• Sealing Flange, Rear or Billet Aluminum Rear Main Seal Upgrade (iABED) FOR VW-AUDI TSI 2.0t 462-103-171F
Select Vehicle From Dropdown

Sealing Flange, Rear or Billet Aluminum Rear Main Seal Upgrade (iABED) FOR VW-AUDI TSI 2.0t 462-103-171F Zoom

Sealing Flange, Rear or Billet Aluminum Rear Main Seal Upgrade (iABED) FOR VW-AUDI TSI 2.0t 462-103-171F

Be the first to review this product

SKU: IAB-06H103171F
$129.99

Details
Details

Do you own a 2.0T TSI powered VW or Audi? Do you have a engine stumble or misfire, check engine light or mysterious oil leaks in the driveway? There's a good chance your rear main seal and PCV valve are failing. Don’t replace it with another part from the dealer that is known to fail. iABED Industries has developed an upgraded solution to permanently fix your rear main seal. The most common cause of rear main seal failure is a faulty PCV valve. The TSI engine is known to have PCV valve failures, which will cause an excess of crankcase pressure. This is more pressure than the rear main seal can handle. PCV issues can surface with multiple symptoms or virtually none at all.

The factory stamped unit uses a flimsy and very thin rubber surface to seal around the crankshaft. The crank is constantly spinning inside this seal too so over time as heat cycles are put through the engine, the rubber will expand and contract and become brittle, especially when it is constantly saturated with oil. iABED's replacement solution uses a patented billet machined plate that is bored to a larger diameter so that a Viton rubber seal can be used. The Viton seal is more heat resistant, fluid resistant, and more than twice as thick.

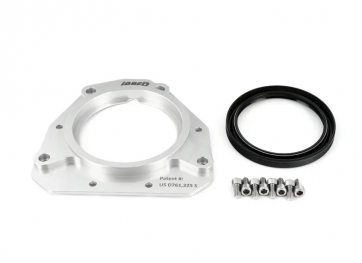

Kit includes:

iABED – 06H Billet Rear Crankshaft Seal

(1) Spring Loaded rear main seal

(8) M6 × 1.0 × 20mm SS Socket Cap Screws

A888.X Billet rear crankshaft seal housing.



Applications include: Application list includes all EA888 engines ranging in North America from the MK5 GTI to MK7 GTI

Volkswagen Beetle 2012-Present

Volkswagen CC 2009-2012

Volkswagen CC 2013-Current

Volkswagen EOS

Volkswagen GTI MK5 2008-2009

Volkswagen GTI MK6 2010-2014

Volkswagen GTI/Golf R MK7 2015-Present

Volkswagen Jetta MK5 2009-2010

Volkswagen Jetta MK6 2011-Present

Volkswagen Passat B6

Volkswagen Sportswagen 2009

Volkswagen Sportswagen 2010-2014

Volkswagen Tiguan 2009-2011

Volkswagen Tiguan 2012-Current

Audi A3 8P 2009-2013

Audi A4 B8 2008-2012

Audi A5 B8 2008-2012

Audi A4 B8.5 2013-Present

Audi A4 B8.5 2013-Present 2.0 Turbo (Valve Lift)

Porsche Macan 2014+ 2.0T Base Model



This product fits the following vehicles:
Make Model Chassis Engine
all all all all
